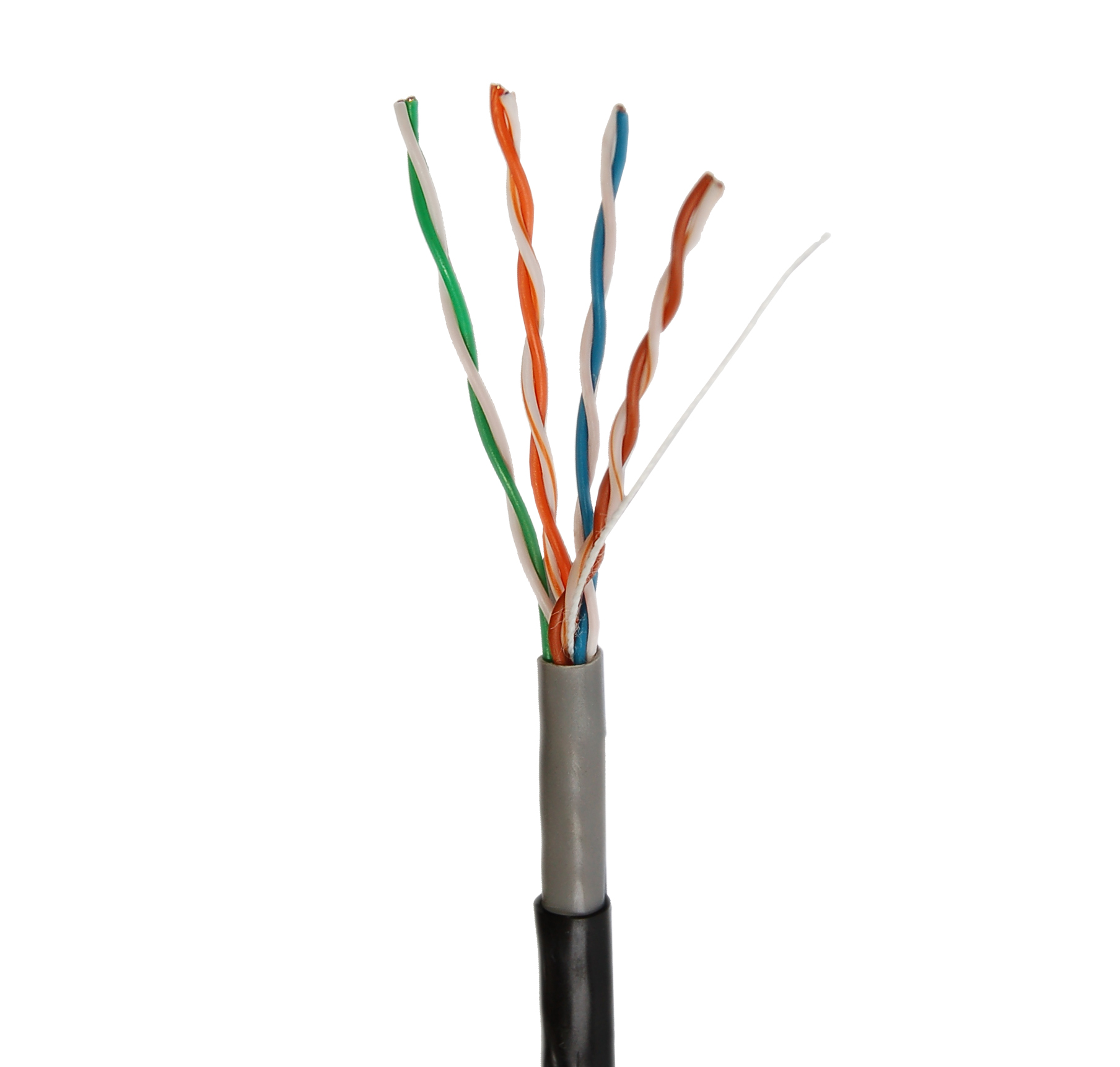

UPC-5051E-SO-OUT

CAT5e UTP LAN outdoor cable, solid, 1000 ft


    UTP unshielded LAN cable with solid wires

    High quality full copper conductors

    Category 5E

    Suitable for outdoor use


Additional information
datasheet (69 kb)
Specifications
Unshielded twisted pair (UTP) LAN cable
Category 5E
Conductor material: AWG24 solid copper
Length: 1000 ft (305 m)
Package: Reelex box
Color: black
Outdoor parameters:
Density: 1.46 g/cm3
Hardness: 75 Shore A
Heat stability: 80
Volume resistivity at 20 'C: 4*10^10 ?*m
Oxygen index: 32 %
Cold resistance: 4 H * (-40 'C)
Tensile strength: 16.7 MPa
Elongaton at break: 215.2 %
Ageing condilion: 100 'C * 168 H
Elongntion at break after ageing: 92 %
The residnal percent of elongation at break: 87 %


Packing details
Q'ty in crtn, pcs1
Crtn volume, CUM0.073008
Crtn weight, kgs13
Individual package size LxWxH:240x390x390 mm
Carton size LxWxH:480x390x390 mm
Country of originCN
Barcode8716309070713
Customs code8544492000
PackagingReelex box
